Din-Rail Automation Controller

UNO-148 V2

Fanless DIN-Rail IPC with Intel® Core™ Processors (13th Gen)

  • Intel® Core™ processors (13th Gen) with 8GB DDR5 memory
  • Port isolation for 8 x DI, 8 x DO, 4 x COM
  • Supports 2 x M.2 M key 2280 NVMe SSD storage (support RAID)
  • Supports 1 x M.2 E Key 2230 wi-fi module and 1 x miniPCIe with Nano SIM card slot
  • Dual 2500 BASE-T Ethernet supports Time-Sensitive Network (TSN) technology
  • Modular design for optional iDoor extension
  • Support Windows 11 IoT Enterprise LTSC

Certifications:

Support Links:

Datasheet Download 3D Model Technical Downloads
  • Fanless DIN-Rail IPC with Intel® Core™ Processors (13th Gen)

Specifications

Mechanical
Weight (Net)
  • 1.8 kg (3.96 lb)
  • 1.8 kg (3.96 lb)
  • 1.8 kg (3.96 lb)
Enclosure
  • Aluminum housing
  • Aluminum housing
  • Aluminum housing
Mounting
  • DIN-rail
  • DIN-rail
  • DIN-rail
Hardware
Certification
  • CB, UL, CE, FCC, CCC, BSMI
  • CB, UL, CE, FCC, CCC, BSMI
  • CB, UL, CE, FCC, CCC, BSMI
Power Input
  • 10~36 VDC
  • 10~36 VDC
  • 10~36 VDC
OS Support
  • Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
  • Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
  • Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
Hardware Security
  • TPM 2.0
  • TPM 2.0
  • TPM 2.0
Graphics Engine
  • Intel® UHD Graphics
  • Intel® UHD Graphics
  • Intel® Iris® X
CPU
  • Intel® Core™ i3-1315UE 1.2GHz 6-Core
  • Intel® Core™ i5-1335UE 1.3GHz 10-Core
  • Intel® Core™ i7-1365UE 1.7GHz 10-Core
Memory
  • 1 x SO-DIMM with 8 GB DDR5 4800 MHz
  • 1 x SO-DIMM with 8 GB DDR5 4800 MHz
  • 1 x SO-DIMM with 8 GB DDR5 4800 MHz
Storage
  • 2 x NVME M.2 SSD (2280 M-key)
  • 2 x NVME M.2 SSD (2280 M-key)
  • 2 x NVME M.2 SSD (2280 M-key)
I/O Interface
Serial Ports
  • 4 x isolated RS-232/422/485
  • 4 x isolated RS-232/422/485
  • 4 x isolated RS-232/422/485
USB Ports
  • 3 x USB 3.2, 1 x USB 2.0
  • 3 x USB 3.2, 1 x USB 2.0
  • 3 x USB 3.2, 1 x USB 2.0
Power Connector
  • 1 x 2-Pin Terminal Block
  • 1 x 2-Pin Terminal Block
  • 1 x 2-Pin Terminal Block
Displays
  • 2 x DP
  • 2 x DP
  • 2 x DP
Expansion
  • 1 x Full-size mPCIe Slot,
    1 x M.2 E key 2230,
    1 x Micro SIM Card Slot
  • 1 x Full-size mPCIe Slot,
    1 x M.2 E key 2230,
    1 x Micro SIM Card Slot
  • 1 x Full-size mPCIe Slot,
    1 x M.2 E key 2230,
    1 x Micro SIM Card Slot
LAN Ports
  • 1 x 10/100/1000 Mbps, 2 x 10/100/1000/2500 Mbps
  • 1 x 10/100/1000 Mbps, 2 x 10/100/1000/2500 Mbps
  • 1 x 10/100/1000 Mbps, 2 x 10/100/1000/2500 Mbps
Environment
Relative Humidity
  • 10~95% RH (non-condensing)
  • 10~95% RH (non-condensing)
  • 10~95% RH (non-condensing)
Storage Temperature
  • -40~85 °C (-40~185 °F)
  • -40~85 °C (-40~185 °F)
  • -40~85 °C (-40~185 °F)
Ingress Protection
  • IP20
  • IP20
  • IP20
Shock Protection
  • 50 G, half sine
  • 50 G, half sine
  • 50 G, half sine
Vibration Protection
  • 2 Grms, random
  • 2 Grms, random
  • 2 Grms, random
Operating Temperature
  • -20~60 °C (-4~140 °F)
  • -20~60 °C (-4~140 °F)
  • -20~60 °C (-4~140 °F)
Local I/O
General Digital I/O
  • 8-ch DI, 8-ch DO
  • 8-ch DI, 8-ch DO
  • 8-ch DI, 8-ch DO

Features & Benefits

Unlock AI Power in Compact DIN-Rail IPC

Unlock AI Power in Compact DIN-Rail IPC

UNO-148 V2, a DIN-rail automation controller, is equipped with the latest 13th Gen Intel® Core™ processors and an innovative design that integrates with its second-stack extension kit to support embedded MXM GPUs based on NVIDIA Ada Lovelace and Ampere architecture, this product is set to revolutionize real-time control and automation applications across various AI-driven industries, unlocking edge AI capabilities.

Quick Overview

MXM GPU Carrier Stack

How to Unleash AI Potential with Expansion Kit

MXM GPU Carrier Stack

View Product Page

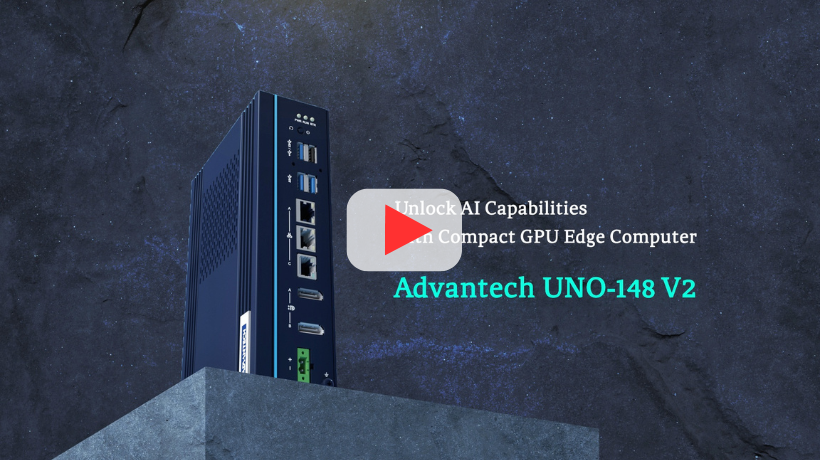

Looking for an AI-powered edge solution >


Looking for an AI-powered edge solution


View Video Now
